Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 340
Max. Grinding Length: 1130
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SGA30100AHR
Voltage: 550V
Power(W): 5500W
Dimension(L*W*H): 2000X2100X2175mm
Weight: 3300kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications

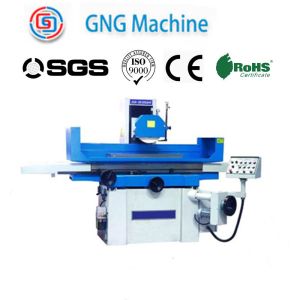

Surface grinding machine
Table size: 305X1020
Megnetic chuck
Grind wheel size: 350X40X127
| SGA saddle moving surface grinder | | | | | |
| Item/Model | Unit | SGA-3063AH | SGA-30100AH | SGA-4080AH | SGA-40100AH |
| SGA-3063AHR | SGA-30100AHR | SGA-4080AHR | SGA-40100AHR |
| SGA-3063AHD | SGA-30100AHD | SGA-4080AHD | SGA-40100AHD |
| table size(WxL) | mm | 305x635 | 305x1020 | 406x813 | 406x1020 |
| max. longitudinal travel | mm | 765 | 1130 | 910 | 1130 |
| max. cross travel | mm | 340 | 340 | 450 | 450 |
| max. distance from spindle center to table | mm | 580 | 580 | 580 | 580 |
| electro magnetic chuck size | mm | 300x600 | 300x1000 | 400x800 | 400x1000 |
| speed of table longitudinal movement | m/min | 7-23 |
| table transverse movement | auto feed | mm/min | 0.1-8 |
| rapid speed | mm/min | 990 |
| feed of handwheel | mm/div | 0.02 |
| wheelhead vertical movement | auto feed | mm | ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) |
| rapid speed | mm/min | ---(H/AH model) / 460 (for AHR model) 240(only for AHD model) |
| feed of handwheel | mm/div | 0.005 |
| grinding wheel | speed | rpm | 1450(50Hz), 1750(60Hz) |
| eize(ODxWxID) | mm | 350x40x127 |
| spindle motor | kw | 5.5 |
| hydranlic motor | kw | 2.2 |
| cooling pump motor | kw | 0.125 |
| elecating motor | kw | ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) |
| cross feed motor | kw | 0.04 |
| max. loading capacity of table(include chuck) | kg | 270 | 400 | 500 | 600 |
| total rated power | kw | 9 |
| height of machine | mm | 1890 |
| floor space(LxW) | mm | 2900x2200 | 4400x2200 | 3600x2400 | 4400x2400 |
| Gross weight | kg | 2600 | 3300 | 3500 | 4000 |
| package dimensions(LxWxH) | mm | 2350x2220x2150 | 2950x2220x2210 |
